CESS New Heights

Scissor Lift

PS-1930 Micro
PRO SERIES

The PS-1930 Micro electric scissor lift is proof that less is more. This Pro Series model can reach working heights up to 25 ft while weighing less than 2,000 lbs, allowing operators to access more applications and types of flooring, including green concrete.

Download PS-1930 Spec Sheet

Resources

PRO SERIES (PS) Parts Manuals

PRO SERIES (PS) Operations Manual

PRO SERIES (PS) Maintenance Manual

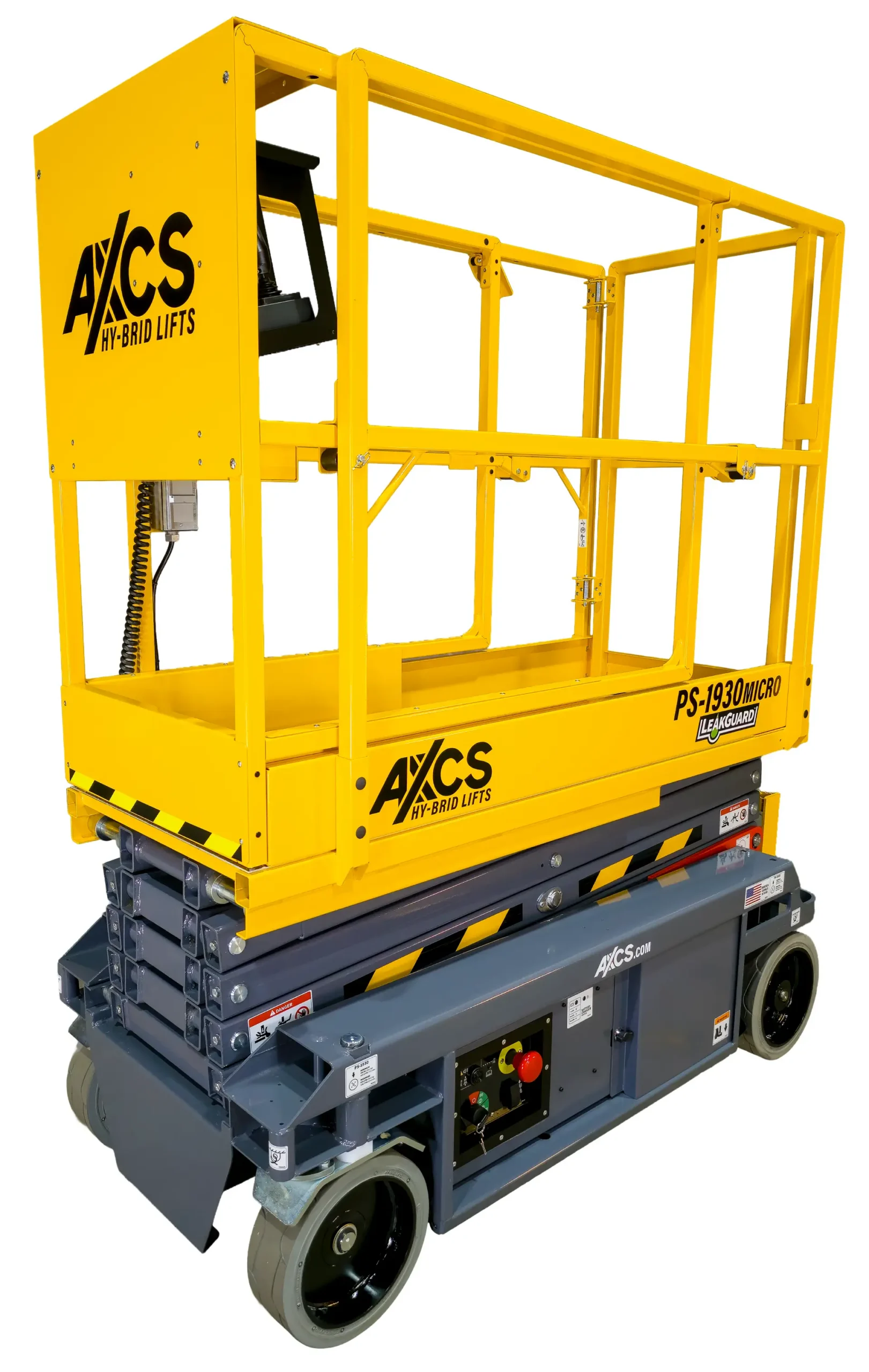

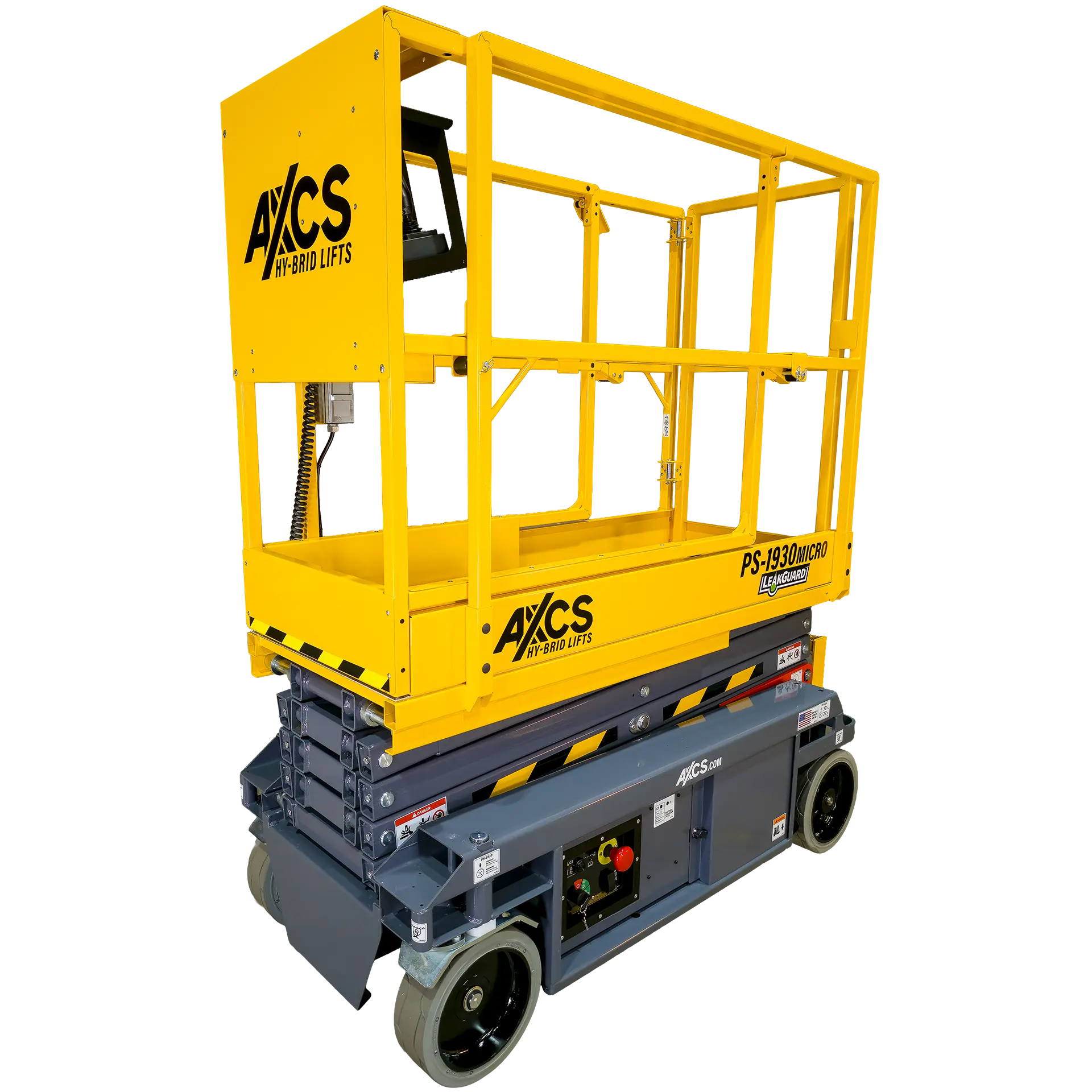

PS 1930 AXCS Branding

KEY FEATURES

LeakGuard™ Fluid Containment System
Flashing Amber LED Beacon
Working height up to 25 ft
Platform capacity up to 650 lbs
Weighs less than 2,000 lbs

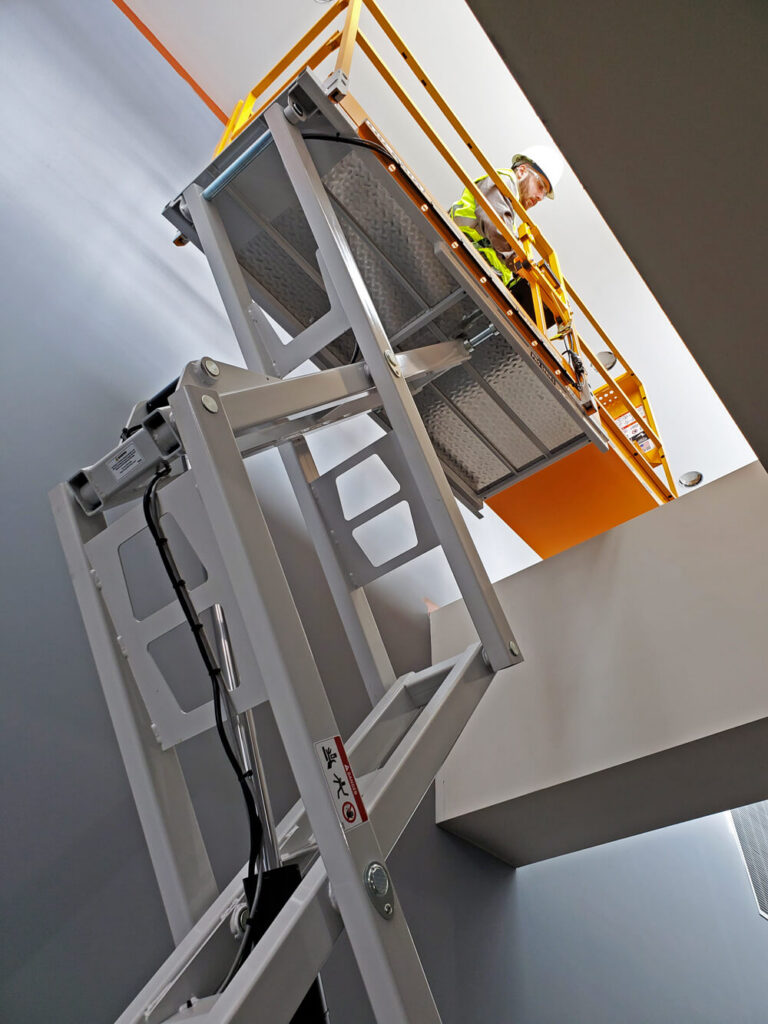

EZ-Glide slide out extension deck
Non-marking wheels
2-year parts & labor warranty
5-year structural warranty
ANSI A92.20 compliant
CSA B354.6:17 compliant
EN-280:2013+A1:2015 compliant

AVAILABLE OPTIONS

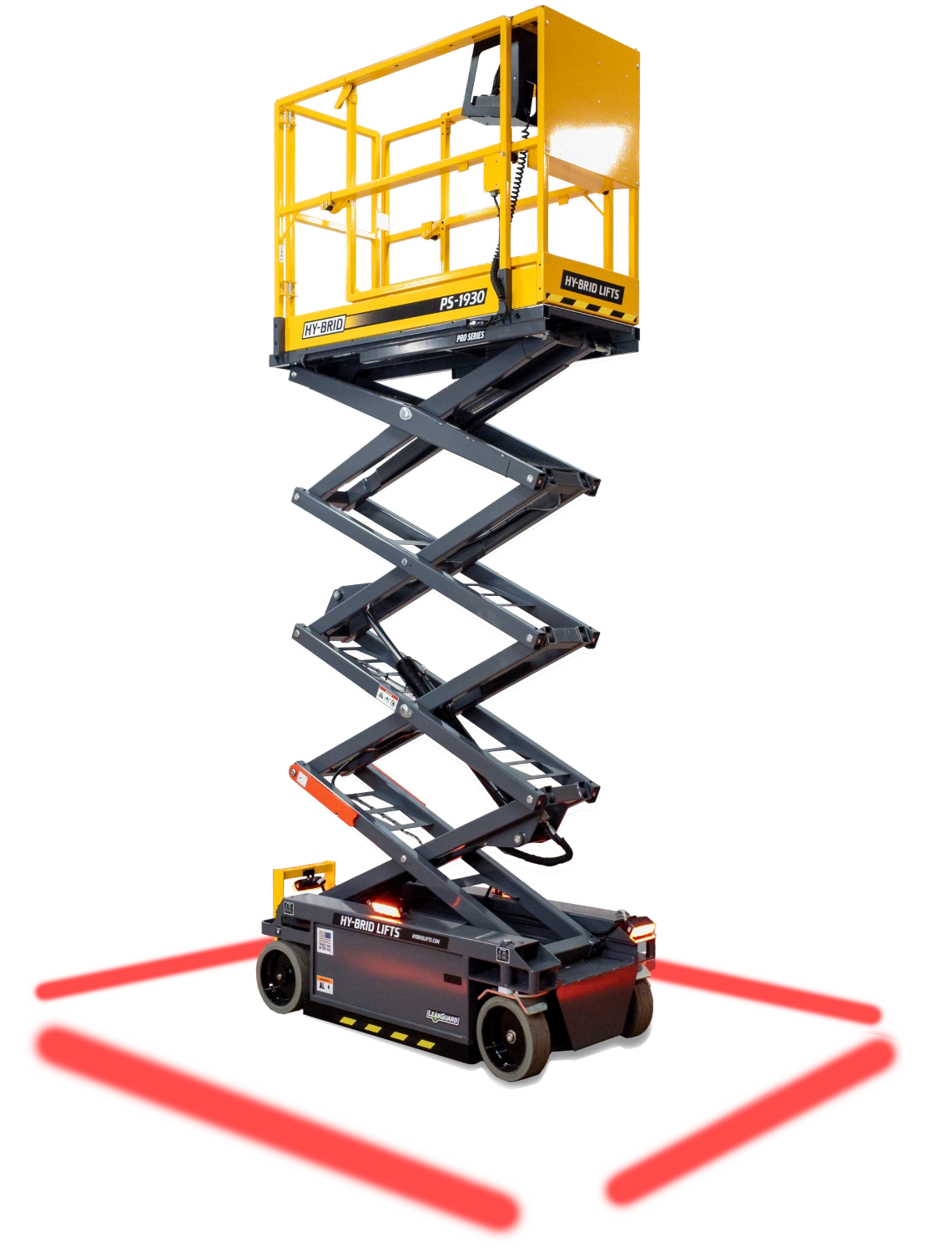

PS 1930 W Perimeter Lights Cutout

Perimeter Lighting / Safety Zone

Hybrid Lifts Pipe Rack Option

Heavy Duty Pipe Rack

AGM Batteries

Confined Render 2(1)

Confined Access / Step Deck

Specifications

Working Height24.4 ft | 7.4 m
- 1 Person
Working Height 17.6 ft | 5.4 m
- 2 Person Indoor/1 Person Outdoor
Platform Height Maximum18.4 ft | 5.6 m
- 1 Person Indoor
Platform Height Maximum11.6 ft | 3.5 m
- 2 Person Indoor/1 Person Outdoor
Platform Height Minimum31 in | 78.7 cm
Ground Clearance Elevated0.3 in | 0.8 cm
Ground Clearance Lowered3 in | 7.6 cm
Overall Length w/ Step69.5 in | 176.5 cm
Overall Width30 in | 76.2 cm
Stowed Height74.3 in | 188.7 cm
Platform Length57.8 in | 146.8 cm
Platform Width21.8 in | 55.4 cm
Slide Out Ext Deck Length30 in | 76.2 cm
Tires (Front/Rear)12/12 in | 30.5/30.5 cm

Performance

Rated Occupancy2/1 Person(s)
- Indoor/Outdoor
Platform Capacity650 lbs | 294.8 kg
Slide Out Ext Deck Cap250 lbs | 113.4 kg
Gradeability30%
Inside Turn Radius8 in | 20.3 cm
Power Source24V DC
Drive Speed Elevated0.6 mph | 0.3 m/s
Drive Speed Lowered2.4 mph | 1.1 m/s
Lift Speed (Up/Down)28/28 sec

Floor Loading

Weight1985 lbs | 900.4 kg
Wheel Load at Min Cap107 psi | 737.7 kPa
Wheel Load at 500 lbs Cap122.2 psi | 842.5 kPa
Wheel Load at Max Cap126.7 psi | 873.6 kPa

PS 1930 W Perimeter Lights Cutout
