Telehandler

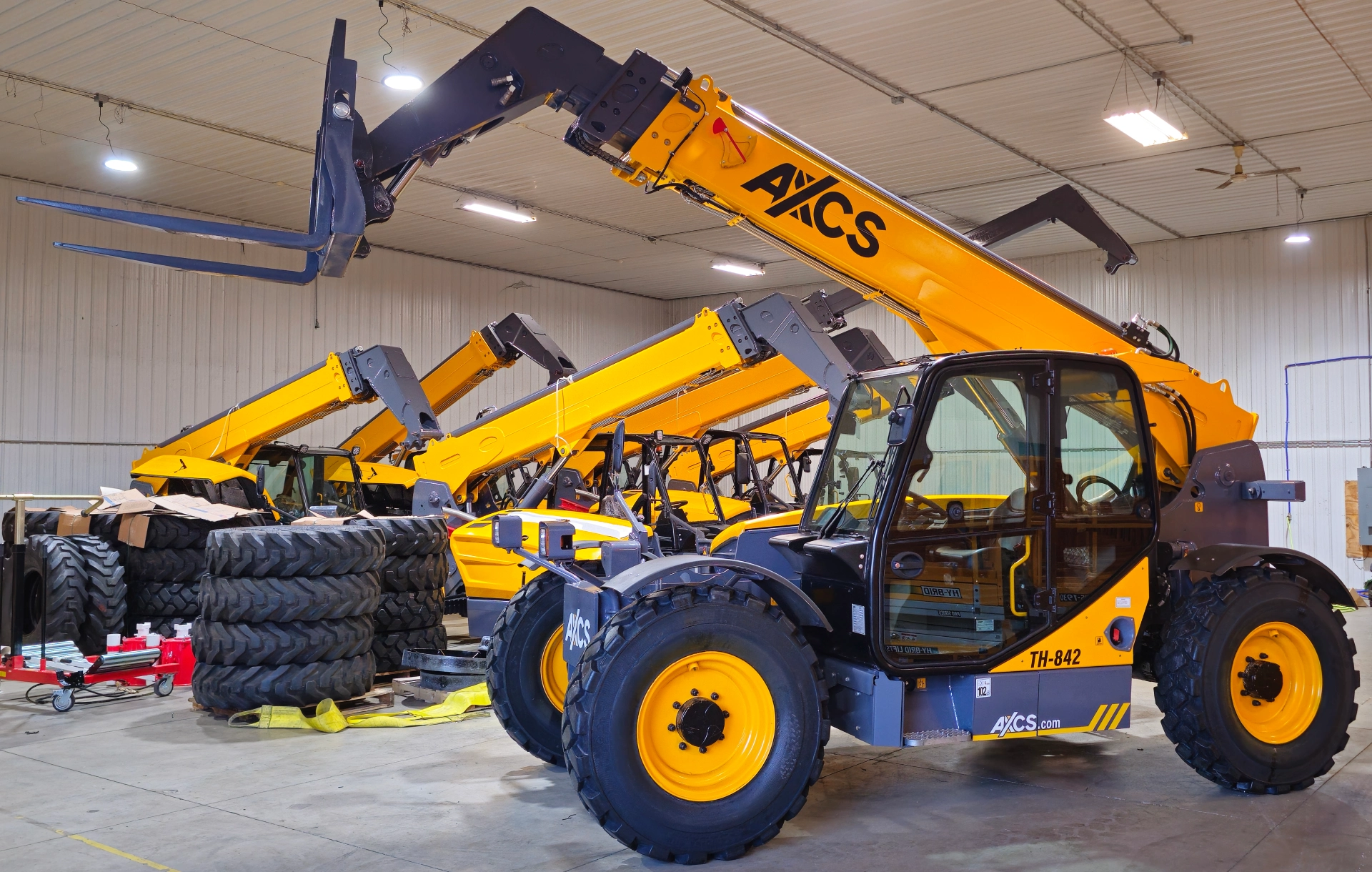

TH-842 Telehandler
TH Series

AXCS Telehandlers get more done faster. Utilizing its heavy-duty boom segment, precise controls, and it's 3 steering modes, allows for quick maneuverability around tricky job sites.

Download TH-842 Spec Sheet

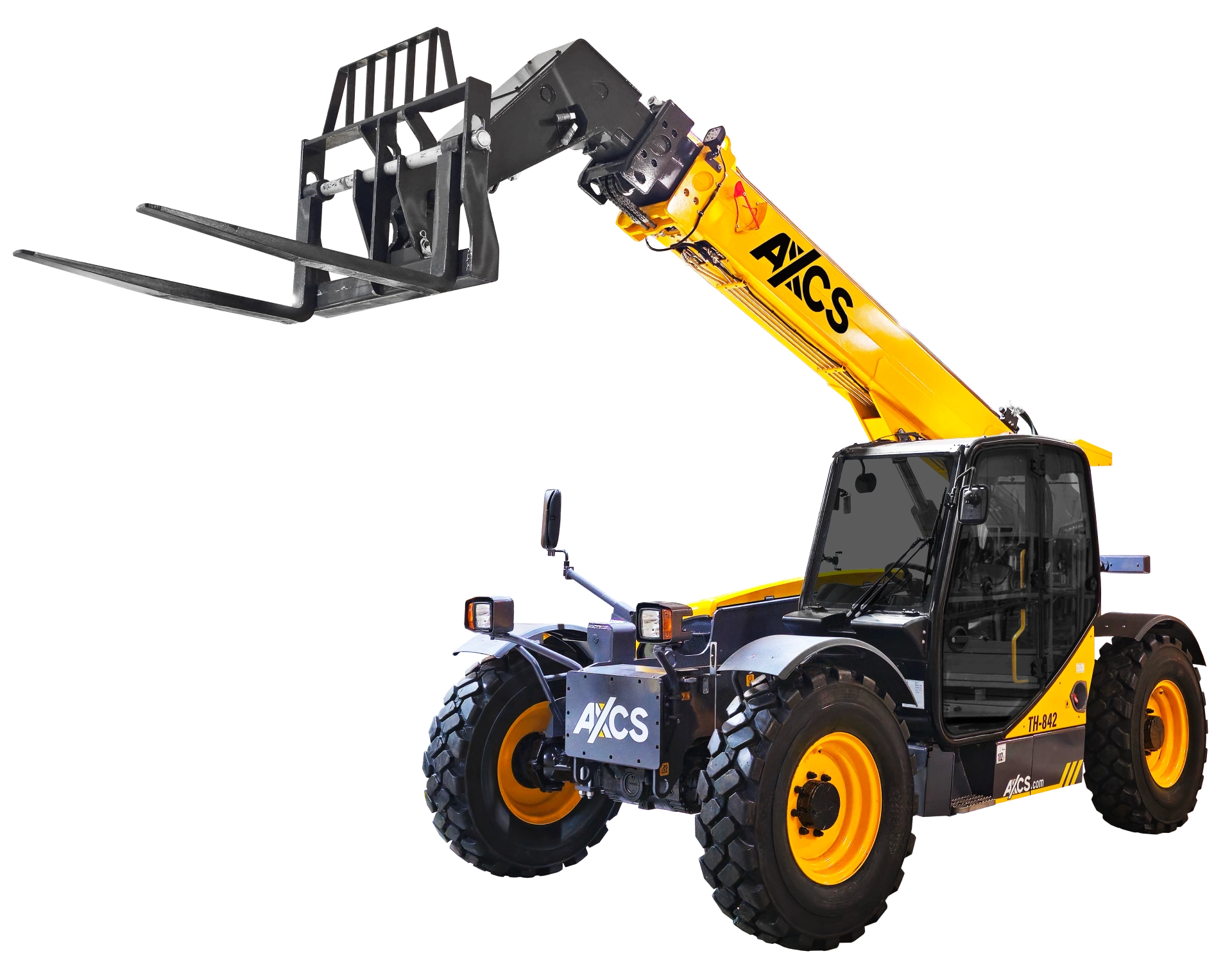

TH 842 Cutout

KEY FEATURES

  • Maximum capacity: 8,000 lbs
  • Maximum lift height: 42 ft
  • Capacity @ max lift height: 6,000 lbs
  • Maximum forward reach: 28.7 ft
  • Capacity @ max reach: 1,650 lbs
  • Weight: 23,920 lbs

Specifications

  • Working Height24.4 ft | 7.4 m
    - 1 Person
  • Working Height 17.6 ft | 5.4 m
    - 2 Person Indoor/1 Person Outdoor
  • Platform Height Maximum18.4 ft | 5.6 m
    - 1 Person Indoor
  • Platform Height Maximum11.6 ft | 3.5 m
    - 2 Person Indoor/1 Person Outdoor
  • Platform Height Minimum31 in | 78.7 cm
  • Ground Clearance Elevated0.3 in | 0.8 cm
  • Ground Clearance Lowered3 in | 7.6 cm
  • Overall Length w/ Step69.5 in | 176.5 cm
  • Overall Width30 in | 76.2 cm
  • Stowed Height74.3 in | 188.7 cm
  • Platform Length57.8 in | 146.8 cm
  • Platform Width21.8 in | 55.4 cm
  • Slide Out Ext Deck Length30 in | 76.2 cm
  • Tires (Front/Rear)12/12 in | 30.5/30.5 cm

Performance

  • Rated Occupancy2/1 Person(s)
    - Indoor/Outdoor
  • Platform Capacity650 lbs | 294.8 kg
  • Slide Out Ext Deck Cap250 lbs | 113.4 kg
  • Gradeability30%
  • Inside Turn Radius8 in | 20.3 cm
  • Power Source24V DC
  • Drive Speed Elevated0.6 mph | 0.3 m/s
  • Drive Speed Lowered2.4 mph | 1.1 m/s
  • Lift Speed (Up/Down)28/28 sec

Floor Loading

  • Weight1985 lbs | 900.4 kg
  • Wheel Load at Min Cap107 psi | 737.7 kPa
  • Wheel Load at 500 lbs Cap122.2 psi | 842.5 kPa
  • Wheel Load at Max Cap126.7 psi | 873.6 kPa
