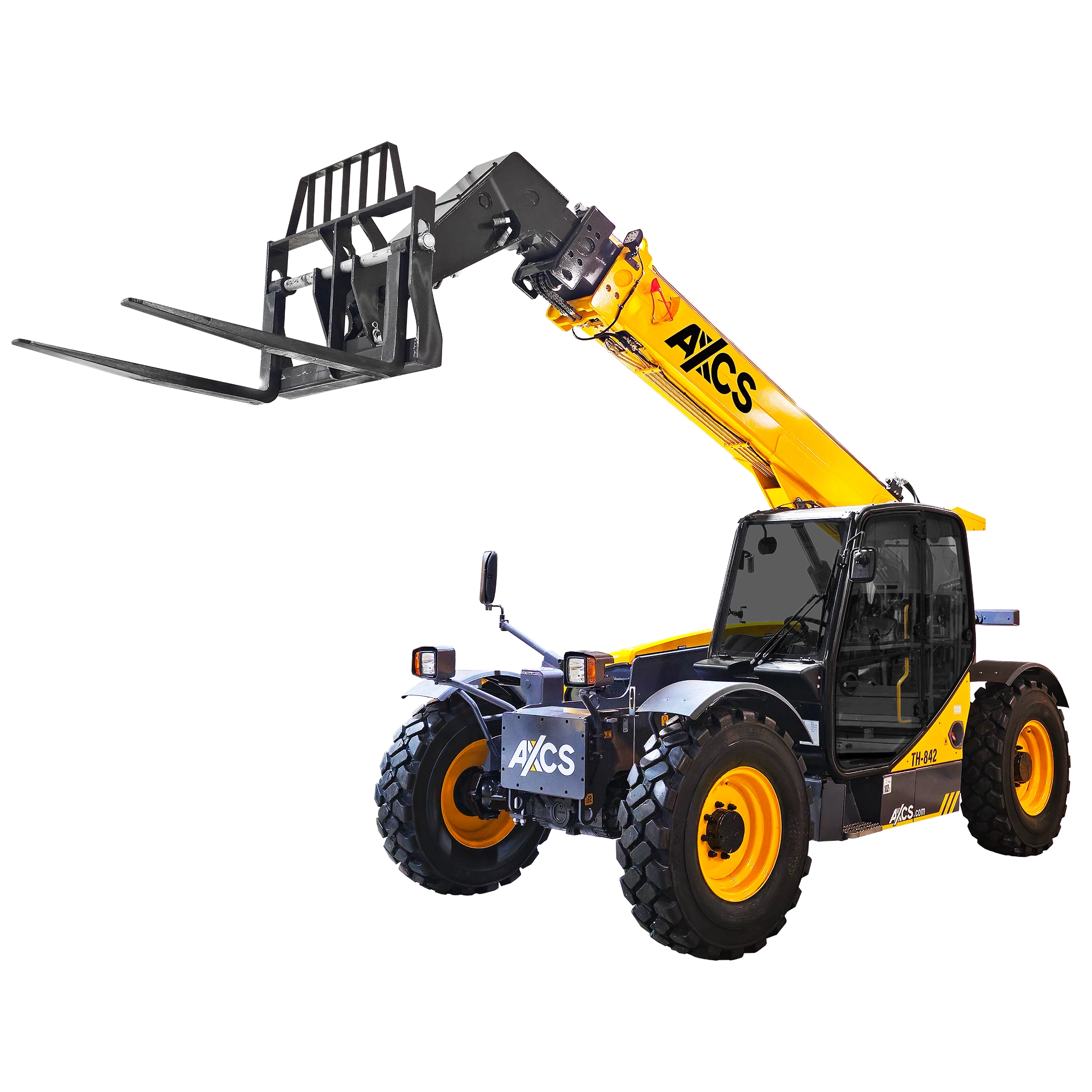

TH-842 Telehandler
TH Series

AXCS Telehandlers get more done faster. Utilizing its heavy-duty boom segment, precise controls, and it's 3 steering modes, allows for quick maneuverability around tricky job sites.

Download TH-842 Spec Sheet
Get Quote

Resources

TH Series, TH-842 Parts Manuals
TH Series, TH-842 Operations Manual
TH Series, TH-842 Maintenance Manual
TH 842 Cutout

KEY FEATURES

  • Maximum capacity: 8,000 lbs
  • Maximum lift height: 42ft
  • Capacity @ max lift height: 6,000 lbs
  • Maximum forward reach: 28.7 ft
  • Capacity @ max reach: 1,650 lbs
  • Weight: 23,920 lbs

AVAILABLE OPTIONS

  • Deutz TCD 3.6 L4 107hp diesel engine*
  • Closed cab*
  • Air conditioning (closed cab only)*
  • Road lights
  • Work lights
  • Boom lights
  • Four wheel fenders
  • Back up sensor
  • Back up camera & sensor
  • Load management system (LLMI)
  • Cold weather package
  • Arctic weather package
  • Telematics
  • Non-marking pneumatic tires 370/75-28
  • Foam-filled or non-marking foam-filled tires 370/75-28
  • Solid rubber or non-marking solid rubber tires 13×28
  • Turf tires 50×15.00-28

Standard Features

Drive

  • EngineDeutz TCD 3.6 L4 74hp diesel - no DEF/DPF
  • Engine Block HeaterIncluded
  • TransmissionPowershift 4F, 3R
  • Back-up AlarmIncluded
  • Drive Type4-wheel drive
  • Steering Modes2-wheel / 4-wheel / crab

Axles

  • Draw BarIntegrated
  • Front AxleDana 212 with limited slip differential
  • Rear AxleStabilization
  • Frame Leveling+/- 10 degrees

Brakes

  • Brake SystemFront & rear multi-disc oil bath
  • Parking BrakeSAHR with indicator light

Tires

  • TiresPneumatic 370/75-28

Hydraulic System

  • Hydraulic Capacity40 gal
  • Aux HydraulicsLoad sensing piston pump

Cab & Other

  • CabOpen cab
  • SeatMulti-adjustable ergonomic suspension
  • JoystickPremium with drive/shift control
  • DisplayIn-cab multifunction
  • Lift HookBoom mounted
  • Battery DisconnectIncluded
  • TelematicsReady
  • TanksSteel fuel & hydraulic
  • MaintenanceEasy service access
  • Boom Wear PadsLong life
  • Phone HolderIncluded
  • Arm RestIntegrated
  • BeaconIncluded

Specifications

  • Max Lifting Capacity8,000 lbs | 3,629 kg
  • Capacity at Full Height6,000 lbs | 2,722 kg
  • Capacity at Max Reach1,650 lbs | 748 kg
  • Operating Weight23,920 lbs | 10,850 kg
  • Inside Turning Radius57 in | 1.45 m
  • Outside Turning Radius146 in | 3.7 m
  • Drive Speed20 mph | 32 kph
  • Frame Leveling+/- 10°
  • Tilt Angle122°
  • Boom Lifting Angle69°

Dimensions

  • Maximum Lift Height42 ft | 12.8 m
  • Maximum Forward Reach28.7 ft | 8.76 m
  • Stowed Length w/o Forks19.5 ft | 5.96 m
  • Overall Width8.1 ft | 2.46 m
  • Stowed Height8.3 ft | 2.54 m
  • Wheelbase11.3 ft | 3.45 m
  • Inside Tire Width6.8 ft | 2.08 m
  • Ground Clearance17 in | 43 cm

Power

  • Power SourceDiesel
  • Engine ModelDeutz TCD 3.6 L4 - no DEF/DPF
  • Horsepower74 hp
  • Fuel Tank40 gal | 150 L
  • Hydraulic Tank40 gal | 150 L
  • Hydraulic Flow37 gal/min | 140 L/min

Boom Cycle Times

  • Lifting8.7 sec
  • Lowering10.1 sec
  • Extension12.4 sec
  • Retraction11.9 sec
  • Crowd3.05 sec
  • Dump3.59 sec

Attachments

Carriages

  • Standard Carriage48 / 60 / 72 in
  • Side Tilt Carriage48 / 60 / 72 in
  • Swing Carriage72 in

Forks

  • Fork Option2.36 x 4 x 48 in
    10,000 lbs capacity (standard)
  • Fork Option2.36 x 4 x 60 in
    10,000 lbs capacity
  • Fork Option2 x 5 x 60 in
    10,000 lbs capacity
  • Fork Option2 x 5 x 72 in
    10,000 lbs capacity
