Telehandler

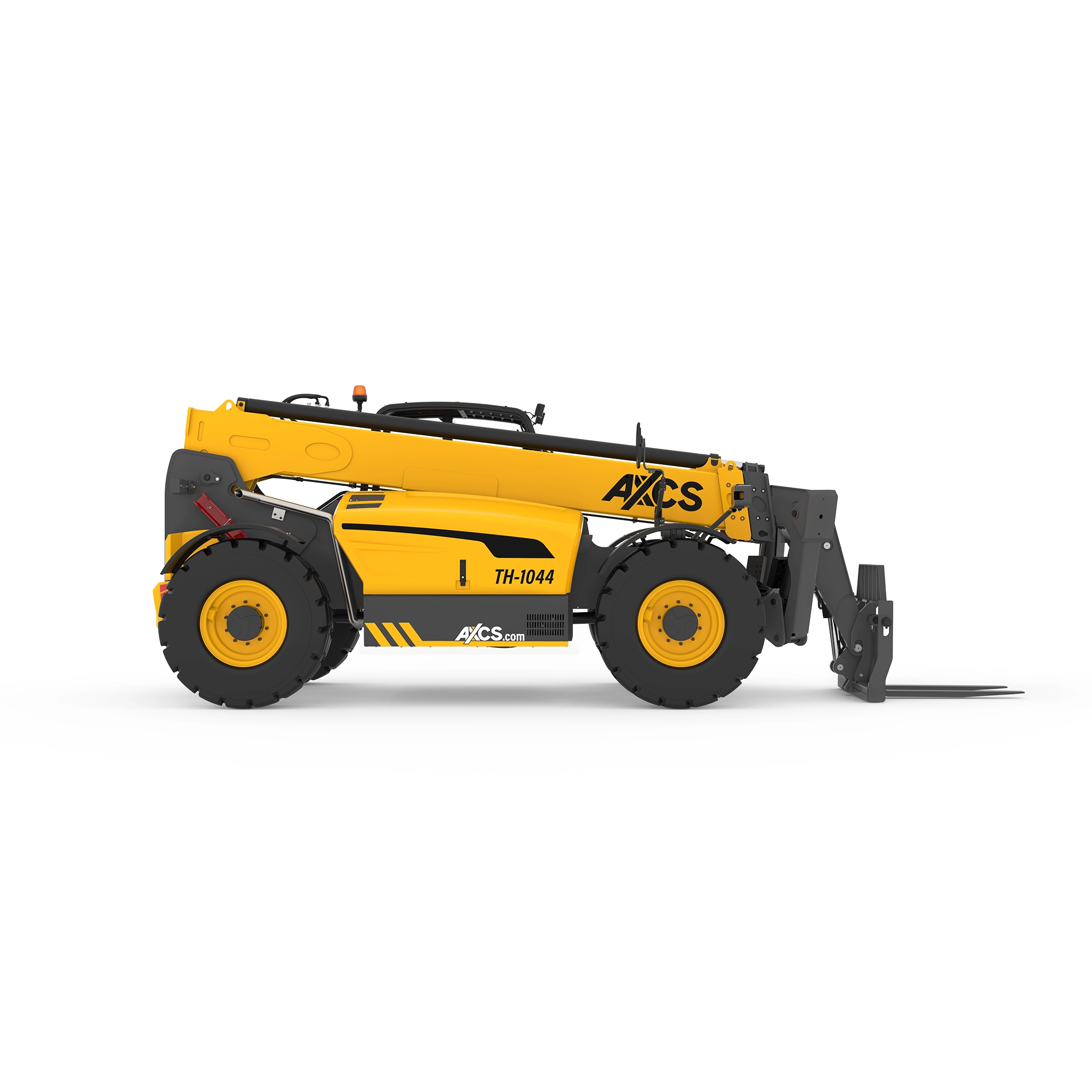

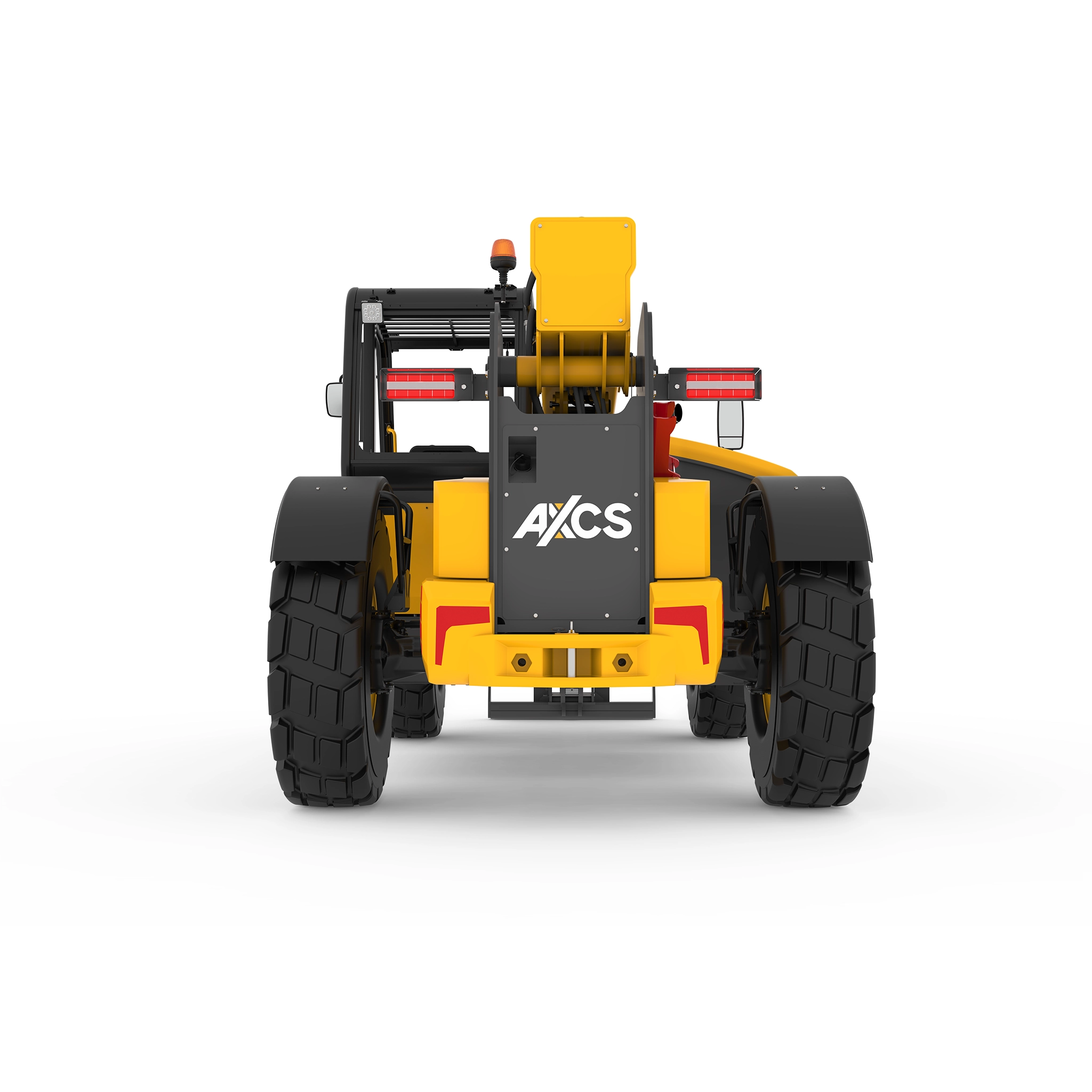

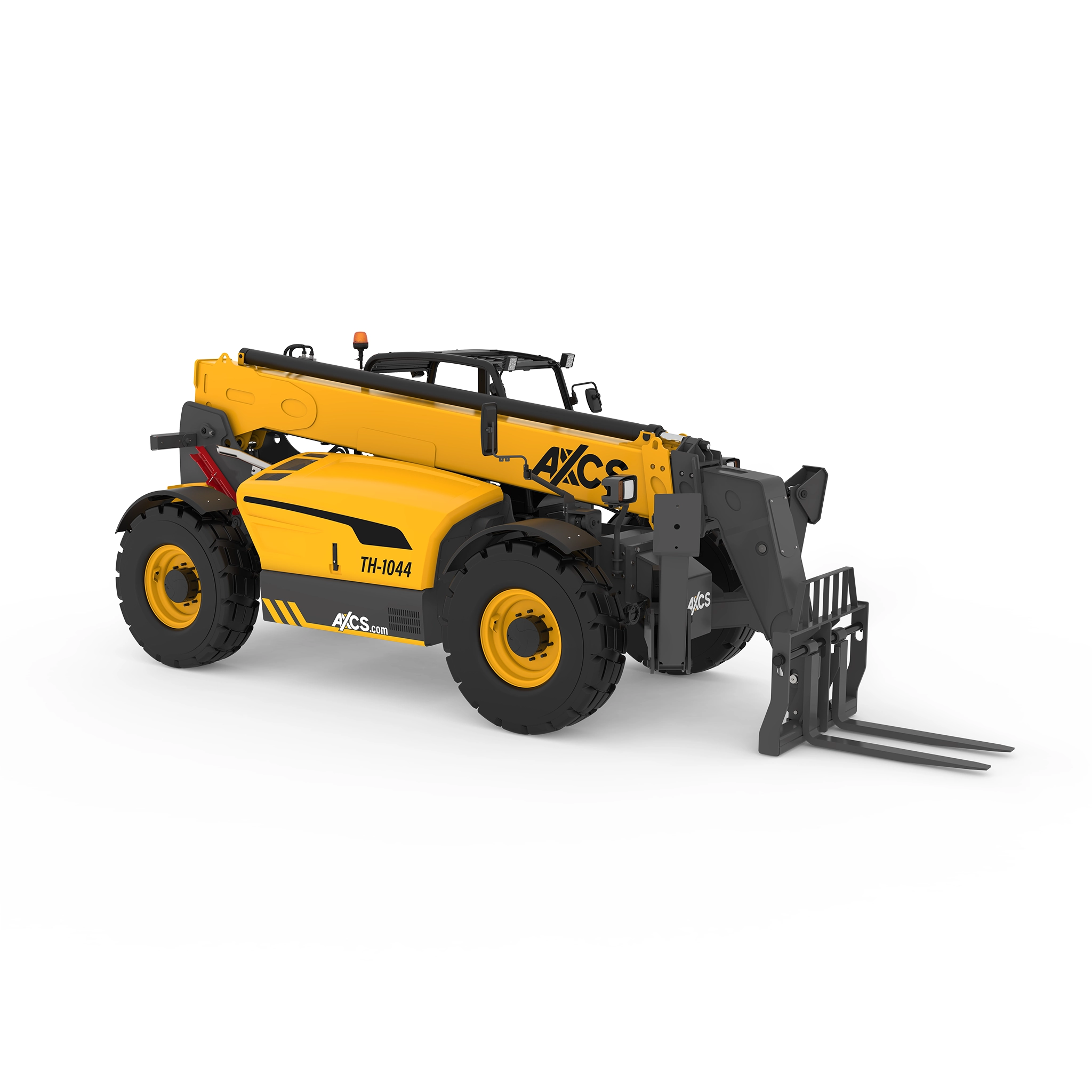

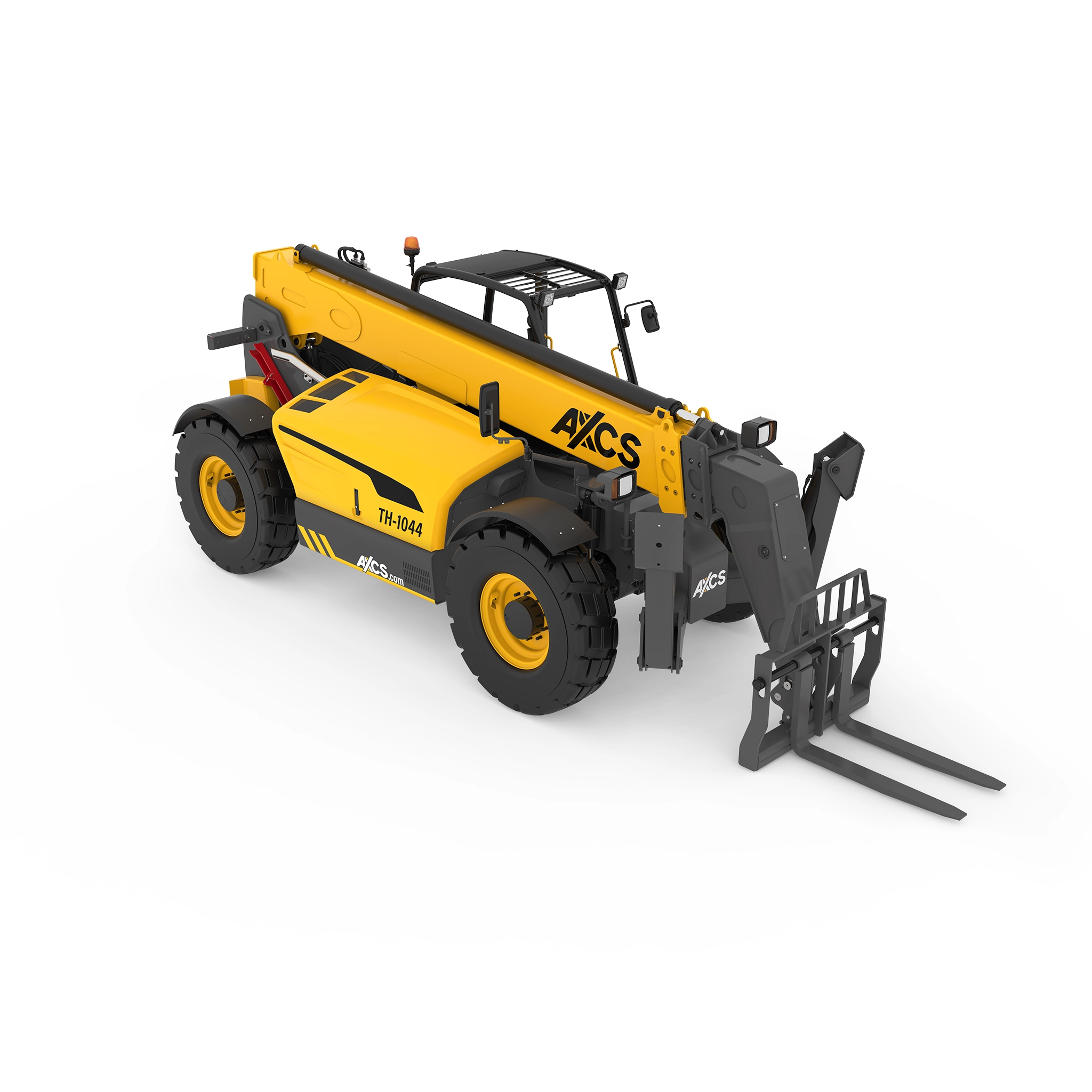

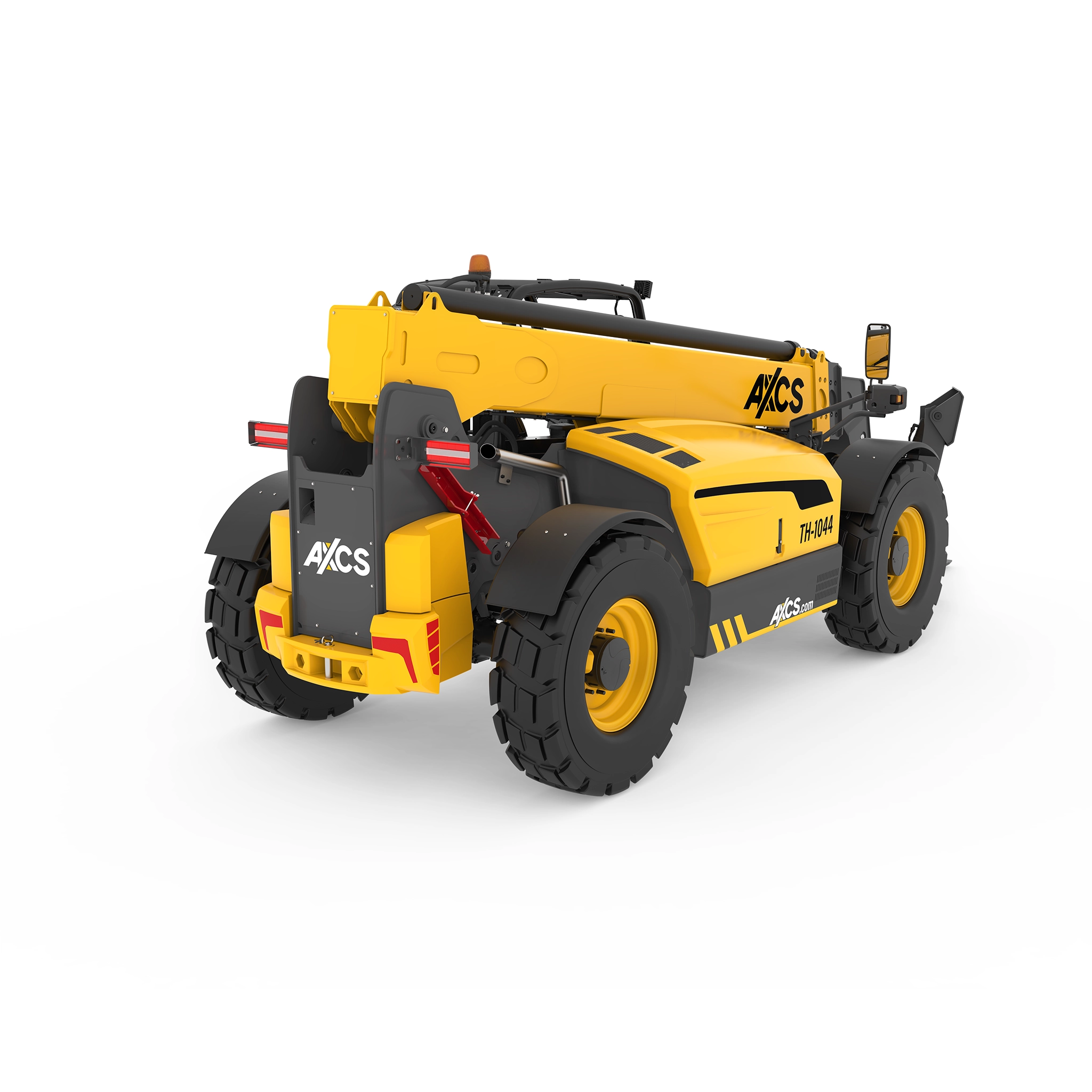

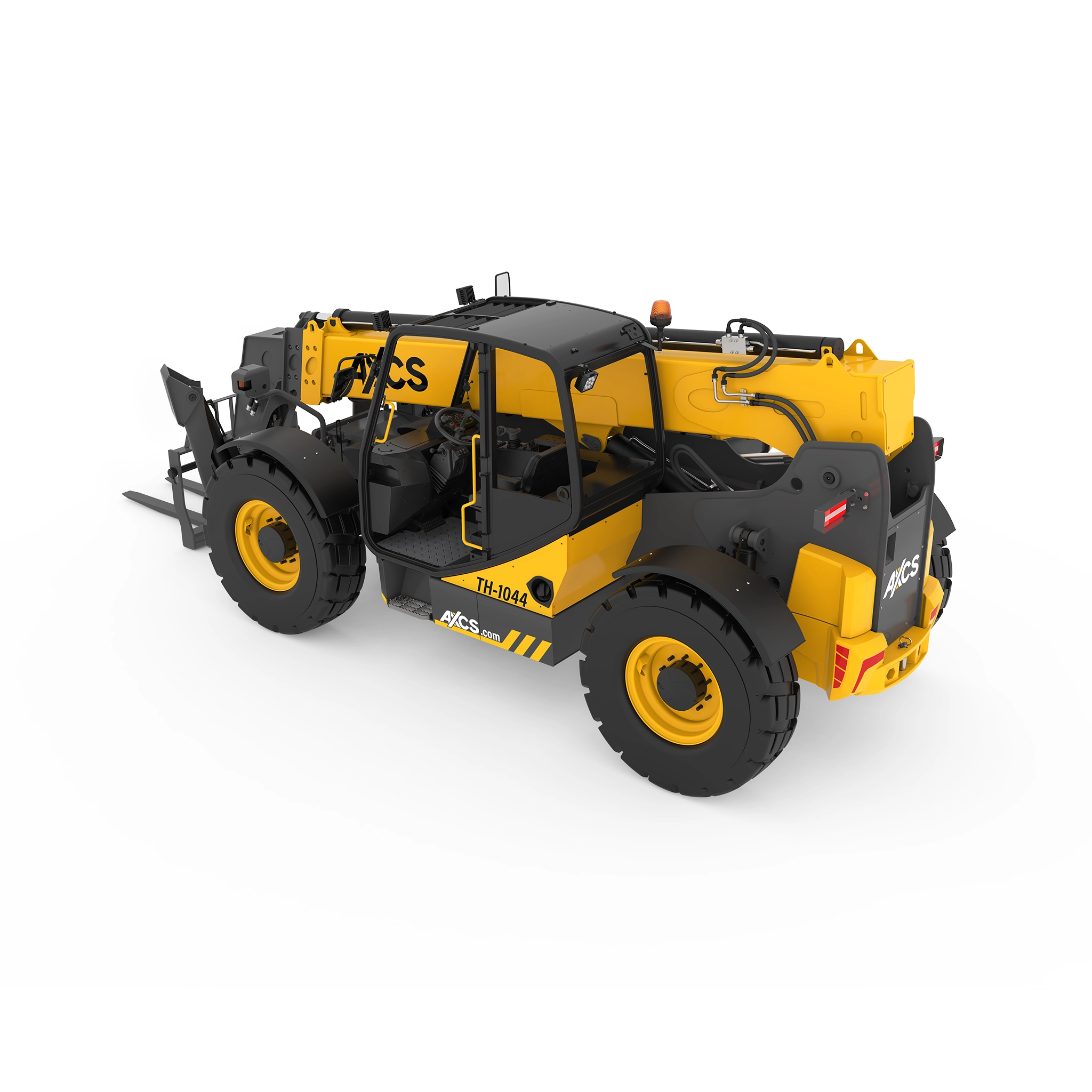

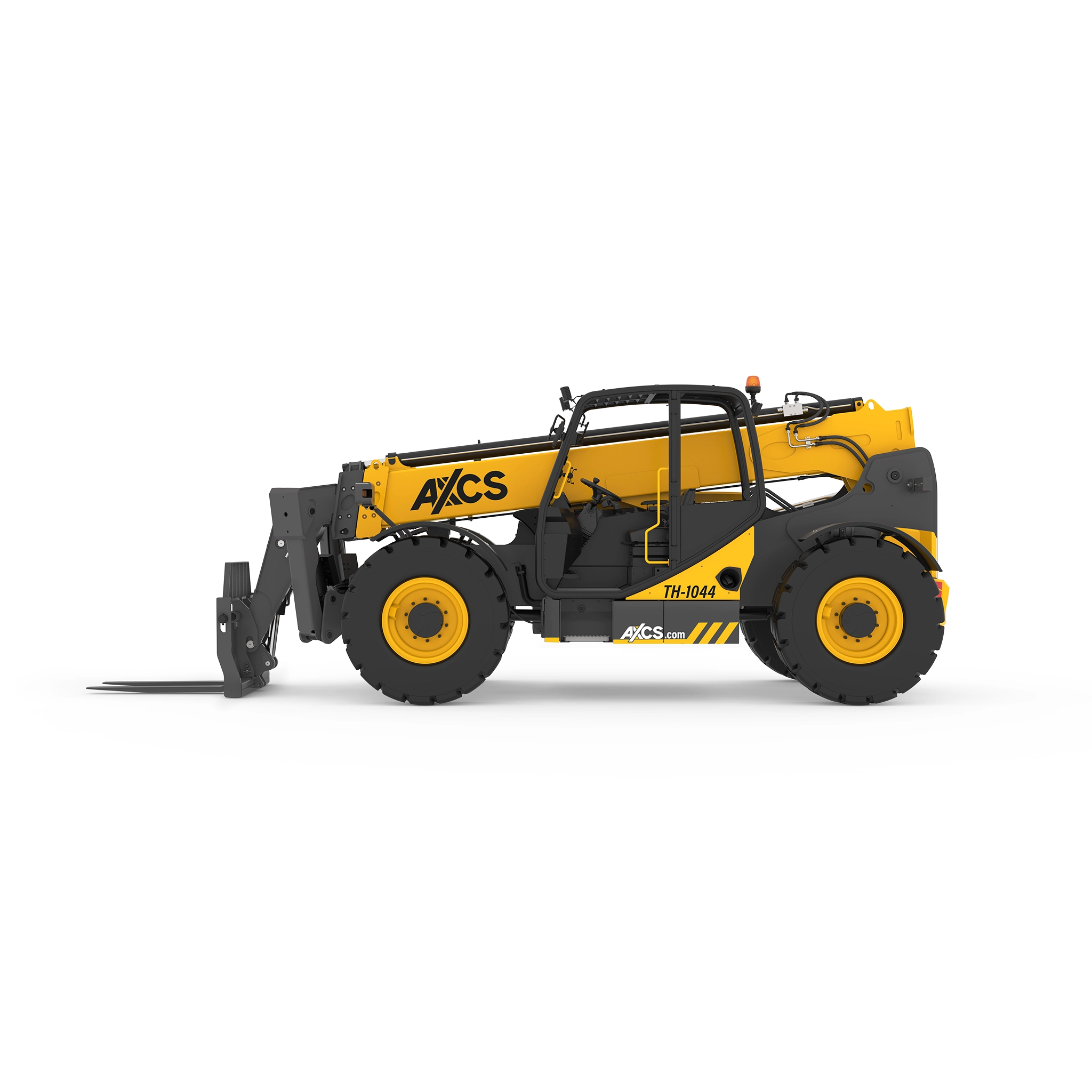

TH-1044 Telehandler
TH Series

AXCS Telehandlers get more done faster. Utilizing its heavy-duty boom segment, precise controls, and it's 3 steering modes, allows for quick maneuverability around tricky job sites.

Download TH-1044 Spec Sheet
Get Quote

Resources

TH Series, TH-1044 Parts Manuals
TH Series, TH-1044 Operations Manual
TH Series, TH-1044 Maintenance Manual

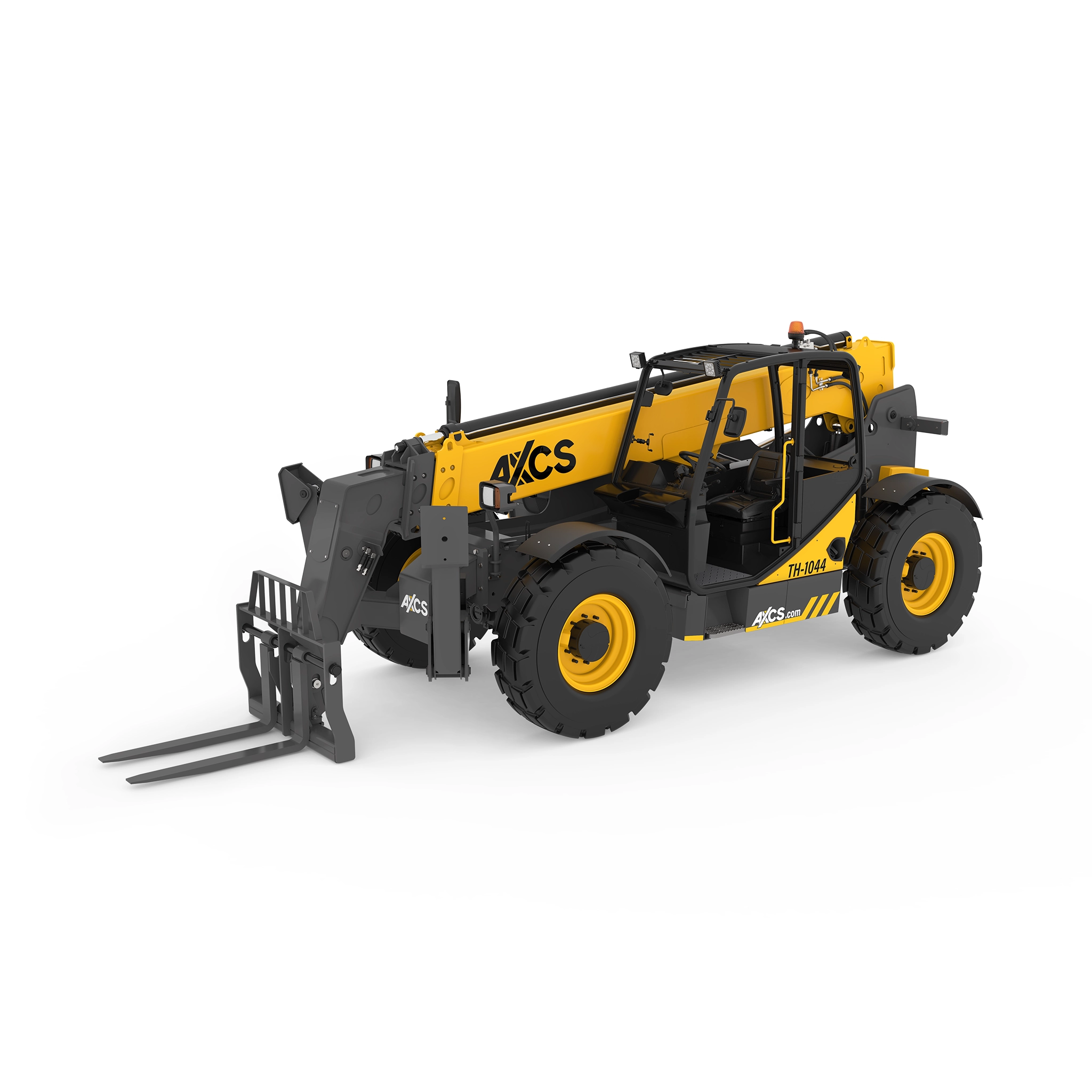

TH 1044 SIDE

KEY FEATURES

  • Maximum capacity: 10,000 lbs
  • Maximum lift height: 44 ft
  • Capacity @ max lift height: 7,000 lbs
  • Maximum forward reach: 30.9 ft
  • Capacity @ max reach:4,000 lbs
  • Weight: 27,117 lbs

Attachments

Carriages

  • Standard Carriage48 / 60 / 72 in
  • Side Tilt Carriage48 / 60 / 72 in
  • Swing Carriage72 in

Forks

  • Fork Option2.36 x 4 x 48 in
    10,000 lbs capacity (standard)
  • Fork Option2.36 x 4 x 60 in
    10,000 lbs capacity
  • Fork Option2 x 5 x 60 in
    10,000 lbs capacity
  • Fork Option2 x 5 x 72 in
    10,000 lbs capacity

Standard Features

Drive

  • EngineDeutz TCD 3.6 L4 74hp diesel - no DEF/DPF
  • Engine Block HeaterIncluded
  • TransmissionPowershift 4F, 3R
  • Back-up AlarmIncluded
  • Drive Type4-wheel drive
  • Steering Modes2-wheel / 4-wheel / crab

Axles

  • Draw BarIntegrated
  • Front AxleDana 212 with limited slip differential
  • Rear AxleStabilization
  • Frame Leveling+/- 10 degrees

Brakes

  • Brake SystemFront & rear multi-disc oil bath
  • Parking BrakeSAHR with indicator light

Tires

  • TiresPneumatic 400/75-28

Hydraulic System

  • Hydraulic Capacity40 gal
  • Aux HydraulicsLoad sensing piston pump

Cab & Other

  • CabOpen cab
  • SeatMulti-adjustable ergonomic suspension
  • JoystickPremium with drive/shift control
  • DisplayIn-cab multifunction
  • Lift HookBoom mounted
  • Battery DisconnectIncluded
  • TelematicsReady
  • TanksSteel fuel & hydraulic
  • MaintenanceEasy service access
  • Boom Wear PadsLong life
  • Phone HolderIncluded
  • Arm RestIntegrated
  • BeaconIncluded

Specifications

  • Max Lifting Capacity10,000 lbs | 4,536 kg
  • Capacity at Full Height7,000 lbs | 3,175 kg
  • Capacity at Max Reach4,000 lbs | 1,814 kg
  • Operating Weight27,117 lbs | 12,300 kg
  • Inside Turning Radius57 in | 1.5 m
  • Outside Turning Radius146 in | 3.7 m
  • Drive Speed20 mph | 32 kph
  • Frame Leveling+/- 10°
  • Tilt Angle122°
  • Boom Lifting Angle72° w/ Stabilizers

Dimensions

  • Maximum Lift Height44.8 ft | 13.6 m
  • Maximum Forward Reach30.9 ft | 9.4 m
  • Stowed Length w/o Forks20.25 ft | 6.17 m
  • Overall Width8.1 ft | 2.46 m
  • Stowed Height8.3 ft | 2.53 m
  • Wheelbase11.3 ft | 3.4 m
  • Inside Tire Width6.8 ft | 2.1 m
  • Ground Clearance17 in | 43 cm

Power

  • Power SourceDiesel
  • Engine ModelDeutz TCD 3.6 L4 - no DEF/DPF
  • Horsepower74 hp
  • Fuel Tank40 gal | 150 L
  • Hydraulic Tank40 gal | 150 L
  • Hydraulic Flow37 gal/min | 140 L/min

Boom Cycle Times

  • Lifting10.35 sec
  • Lowering10.27 sec
  • Extension17.61 sec
  • Retraction16.21 sec
  • Crowd3.61 sec
  • Dump4.08 sec
